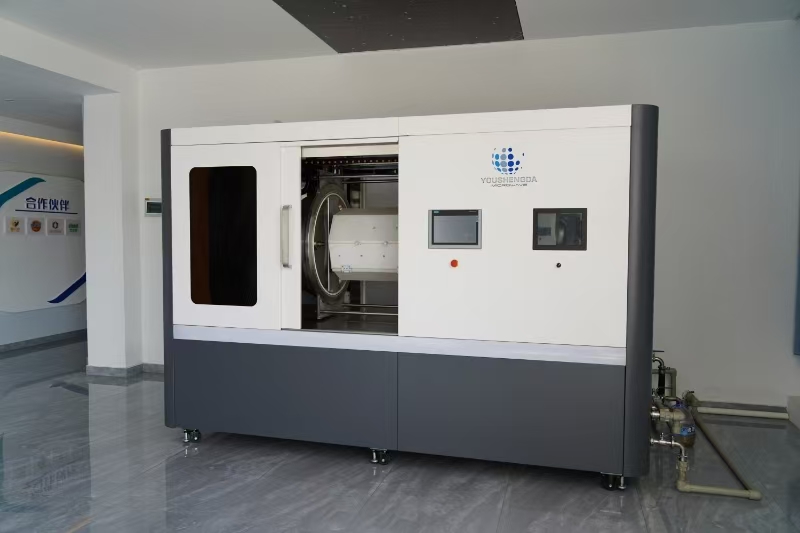

MVD-60kw microwave hanging basket vacuum low-temperature dryer is an equipment developed to provide a new and efficient low-temperature drying process for the deep processing of food, pharmaceutical, biological, chemical, new materials and agricultural by-products.
Most fruits and vegetables are dehydrated and dried at low temperature, including banana slices, apple slices, jackfruit, figs, lotus seeds, red dates and jujube slices, cashews, walnut kernels and walnuts with shells, ginkgo with shells, siraitia grosvenorii, chickpea, lycium barbarum, and other fruit products.
MVD-60kw microwave hanging basket vacuum low temperature dryer is used to dry chemical products at low temperature, including various synthetic chemical powders, particles and viscous materials.
It includes volatile, flammable and explosive products such as ethanol and methanol, which can be dried at low temperature, and the evaporated evaporation can be recovered while drying, which is safe, environmentally friendly and reduces environmental pollution.
General use:
1. The initial water content of the material is below 80%.
2. The dryness is required to be within 1% - 20%.
3. The drying temperature is within 20-120 ℃.
4. The material is powder or granular, and there is no requirement on the appearance after drying.
5. It can meet the intermittent operation performance.
Common types are:
1. Drying temperature: 10-100 ℃.
2. High vacuum: ≥ -0.098Mpa.
3. Recovery of evaporation: more than 90% of the evaporated gas is effectively recovered.
4. Multi-purpose machine: can dry various materials. Powder, particle, block, etc
5. Condensation temperature: - 20 ℃. It is comparable to the freeze-drying effect.
Other special purposes:
Microwave vacuum wall breaking:
Microwave vacuum low-temperature drying dehydration:
Microwave vacuum low-temperature sterilization:
Microwave vacuum carbonization:
Microwave vacuum removal of pesticide residues:
Microwave vacuum expansion:
Microwave vacuum desulfurization and deacidification:

    1. Low drying temperature - lower than 30 ℃,
2. Recoverable evaporation ---- Recoverable condensable matter above 0 ℃.
3. It can evaporate and separate the residues of organic pesticides and sulfides inside the material -- after reduction, it can reach PPM level.
4. The vacuum degree is high when the equipment is working -- above -0.096.
5. Take dry rose as an example, three products can be obtained at the same time - sulfur free rose dry flower, super rose cell fluid and super rose essential oil.
6. Design service life ＞ 12 years.
Under vacuum conditions, heating the object can make the water inside the object evaporate without temperature rise. Due to the difficulty of air convection and heat transfer under vacuum conditions, the only way to provide heat energy for materials is to rely on heat conduction. The conventional vacuum drying method has a slow heat transfer speed, low efficiency, and difficult temperature control. The heated material will also produce internal and external temperature difference. Microwave heating is a kind of radiation heating, which is the direct interaction between microwave and objects, so that they are heated inside and outside at the same time, without convection or conduction to transfer heat, so the heating speed is fast, the drying efficiency is high, and the drying quality is high.

Rated input power S: 75kW

Microwave output power P: ≤ 60KW

Single loading volume L: 360 L/time

Drying and dehydration efficiency Q: 50-60kg/h

Temperature control accuracy C: ± 3 ℃

Microwave leakage detection p: 2MW/cm2 ≤ 5mw (national safety standard)

Rotation speed of basket V: 0-15 rpm

Overall dimension of equipment L: 5260 * 2250 * 2200mm

Executive standard of microwave equipment: in accordance with the national GB/T 5959.6-2008 Safety Code for Industrial Microwave Heating Equipment

Comply with the national GB15226-1993 electrical safety standard

Comply with the national GB16798-1997 food machinery hygiene and safety standards

MVD-60kw Microwave Basket Vacuum Cryogenic Dryer has been successfully applied Product Catalog:
Traditional Chinese medicine slices: Fritillaria, Huai yam, ginger slices, gastrodia elata slices, siraitia grosvenorii, dried ginger, astragalus, coptis chinensis, salvia miltiorrhiza, polygonum multiflorum, licorice, atractylodes macrocephala, raw rehmannia, angelica, betel nut, panax notoginseng slices, cistanche deserticola, etc
Extract: expanded donkey-hide gelatin powder, expanded drying of traditional Chinese medicine extract, animal and plant extracts, etc
Dried fruit food: dried durian, dried figs, white fungus, balsam pear slices, green pepper, osmanthus, green cabbage Malantou, cauliflower, rose, mushroom, lemon slices,
Chemical synthesis: synthetic resin, natural rubber drying, bisphenol A epoxy resin, dodecylbenzene sulfonic acid, propyl p-hydroxybenzoate
Biological products: transglutaminase, Keran gum, tea polyphenols, various biological agents, fermentation engineering, low-temperature drying, etc
